Gibus Med Twist : Bioclimatic Pergola with Rotating Aluminium Blades
A bioclimatic pergola made in Italy by Gibus with motorised adjustable aluminium louvre blades to allow complete control of internal environment. Modular design allows integration of glass walls, drop down blinds, heaters and LED lighting for a truly bespoke outdoor living space or garden room. Made to measure and remote control operated.
Med Twist Price List
Med Twist Data Sheet
Features
Louvre blades rotate to any position within a 0-135° range to allow full or partial light or to release or capture heat
Unique design allows the blades to remain in contact with the frame throughout the entire motion, eliminating gaps and water leaks
Down pipes integrated into the frame posts allows water to drain off the blades, into the gutter and out through the posts
Extruded painted aluminium frame, blades and gutters providing superior strength, durability and clean edges
Offers a complete outdoor room solution with optional sliding glass doors, outdoor drop blinds, lighting & heating
Wide range of combinations allowing total freedom of configuration
Movement of the blades operated by remove control
2 year manufacturers warranty - 5 year available
The Gibus Med Twist bioclimatic pergola has been designed to obtain extremely clean stylistic lines in a modular solution, capable of enhancing any type of architectural style over time.
The aluminium louver blades have motorised movement and can rotate from the horizontal closed position, which guarantees excellent seal from rain, to the open position of varying degrees ranging from 0-135. Sun exposure on the external side of the blades generates heat, which induces natural air movement from the bottom upwards, returning a refreshing breeze to the environment. Internal blade insulation can also be added to reduce the sound of rain on the roof by up to 70%.
The patented Side Seal between the blades and along the perimeter, together with their particular shape, ensures rainwater effortlessly flows to the ground through the integrated drainpipes. Each blade, along its entire length, has a seal that the adjacent blade rests on when closed, guaranteeing water and air cannot get into the structure.
The Med Twist is available with a range of optional extras including sliding glass doors, outdoor drop blinds, three unique configurations of LED lighting and electric heaters.
Configuration is available in the Freestanding Island version with four or six posts, or in the Wall Mounted versions, two or four posts. Unlimited coupling options available to create coverage for larger outdoor seating areas.
Movement of the louver blades is operated by remote control with variable power depending on the pergola dimensions.
Configuration Options
Frame & Blade Colours
Sun & Rain Protection
Rain Protection
The Blades in the closed position effectively protect against rain, dispatching rainwater into the drainage channels
Sun Protection
The aluminium cover gives optimal protection of direct sun radiation, allowing full control of the amount of light that filters inside
Ventilation
A pleasant and cooling breeze is enjoyed by slightly opening the blades to create the natural flow of air that rises
Unique Design
Twist Motion
The elegant patent two-bladed blades rotate with the help of two linear motors, allowing the roof to open up to 135°.
Sun Protection

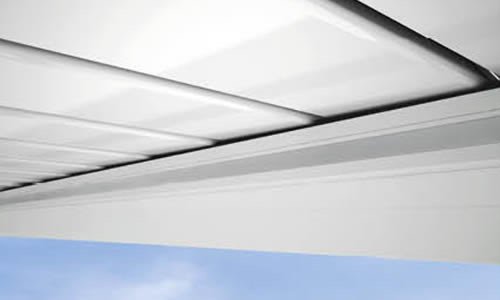

The patent seal between each blade and along the perimeter guarantee perfect insulation from the external environment.
Water Drainage

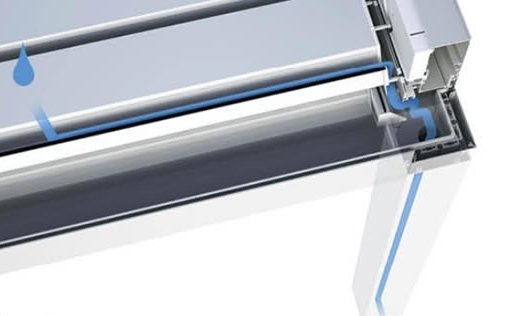

The sealing between the blades and perimeter gutters effectively diverts rainwater to flow down the integrated drainpipes to the ground.
Light Options
Blade LED Spots
Rectangular 3 Watt LED spotlights integrated inside the blades to guarantee excellent light distribution over the entire surface covered.
Perimeter LED Spots
Rectangular LED spotlights integrated inside the perimeter gutter of the structure. Arranged every 50cm in groups of 6 per light point, each are 3 Watts.
RGB LED Strips
RGB LED strips applied along the inside perimeter, set a single colour choice from 7 options (white, yellow, orange, red, green, blue and purple) or create a light program.
Enclosure Options
Drop Blinds
Blind in self-supporting vertical box cassette with guides including ZIP system for complete wind and rain protection.
Sliding Glass Walls
Sliding glass walls on stainless steel tracks, in 2, 3 or 4 way solutions and up to 8 doors without perimeter profiles. Toughened safety glass from 10 to 12mm thick.
Sliding and Folding Glass
Sliding and folding wall panels made of toughened 10mm safety glass without perimeter profiles.
Med Twist Downloads
Installation
OutHounds use a nationwide network of certified skilled local trade partners to manage installations. Our partners include general builders, patio door specialists, landscape gardeners and roofers, so regardless of how complex your requirements are, we can get the right team on the job. Alternatively OutHounds can provide full installation support should you decide to use your own tradesman or even install yourself. Whichever option you choose, OutHounds will always provide comprehensive post installation support during the 5 year product warranty period. With OutHounds you get a great product, a perfect installation all at an unbeatable price.

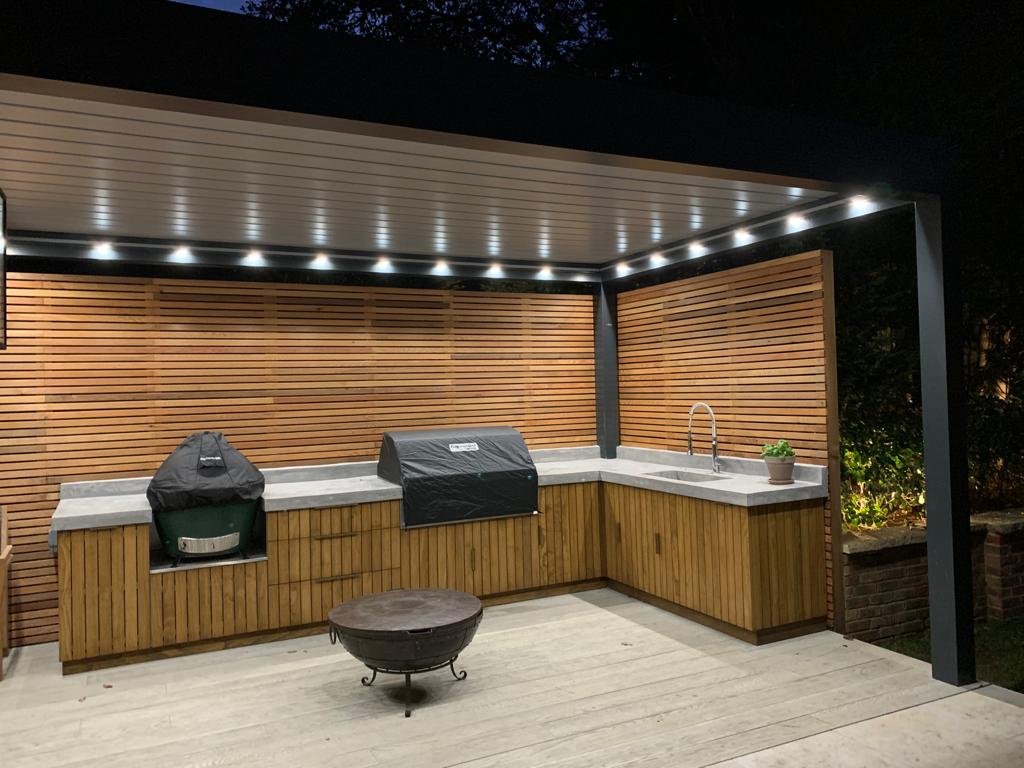

Recent Projects
Kingston-Upon-Thames, Greater London
You can view the rest of our bioclimatic pergola projects by clicking the button below
Gibus is an Italian company and a global leader in designing and manufacturing awnings, pergolas and bioclimatic pergolas. They invest heavily in research and development, repeatedly developing new innovations in the outdoor living space.
People are at the heart of their success. With their experience, vision and passion they are able to produce premium quality tailor made pergolas and awnings, bringing the Italian-style outdoor living to thousands of homes across the world. Gibus products encompass the excellence of the ‘Made in Italy’ trademark: quality, style, creativity and authenticity.
