Gibus Med Varia : Bioclimatic Pergola with Rotating Aluminium Blades
Med Varia is the new Gibus bioclimatic flat roof pergola system. The fully integrated side closures hidden within the unique design allows the coupling of sliding glass and vertical shade screens for exceptional all year round protection. Available in wall mounted or freestanding island configurations. Made to measure and remote controlled operated.
Med Varia Price List
Med Varia Data Sheet
Features
Fully sealed with integrated downpipes to channel rain water off the curved system of the blades, into the gutter and out through the posts
Patent Twist Motion allows rotation of the blades from 0° to 135° for full or partial light or to release or capture heat
All technology hidden within the design enables insertion of sliding glass panels together with vertical blinds
Remote control operation
Made of made powder-coated extruded aluminium
Optional LED spotlights integrated into roof or perimeter of frame
2 year manufacturers warranty - 5 year available
The Med Varia is new to the Gibus bioclimatic pergola range, designed to obtain maximum comfort and minimum energy waste whilst maintaining the Italian know-how in contemporary styling for outdoor spaces.
What makes this solution unique is its ability to permit full integration of both glass walls and vertical drop shade screens, essential to avoid the greenhouse effect during summer months This combination allows for optimal protection from wind, rain, noise, dust and UV rays.
The aluminium louver blades have motorised movement and can rotate from the horizontal closed position, to the open position of varying degrees ranging from 0-135. Sun exposure on the external side of the blades generates heat, which induces natural air movement from the bottom upwards, returning a refreshing breeze to the environment. Internal blade insulation can also be added to reduce the sound of rain on the roof by up to 70%.
The patented Side Seal between the blades and along the perimeter, together with their particular shape, ensures rainwater effortlessly flows to the ground through the integrated drainpipes. Each blade, along its entire length, has a seal that the adjacent blade rests on when closed, guaranteeing water and air cannot get into the structure.
The sliding glass doors and vertical shade screens are optional extras. LED lighting, available in three unique configurations, and electric heaters are also optional additions.
Configuration is available in the Freestanding Island version with four or six posts, Leaning version with two or four posts or Lateral Leaning with two or three posts. Unlimited coupling options available to create coverage for larger outdoor seating areas.
Movement of the louver blades is operated by remote control with variable power depending on the pergola dimensions.
Configuration Options
Frame and Blade Colours
Sun & Rain Protection
Rain Protection
The Blades in the closed position effectively protect against rain, dispatching rainwater into the drainage channels.
Sun Protection
The aluminium cover gives optimal protection of direct sun radiation, allowing full control of the amount of light that filters inside.
Ventilation
A pleasant and cooling breeze is enjoyed by slightly opening the blades to create the natural flow of air that rises.
Water Drainage
Gutter system integrated into frame and leg posts neatly removes water to ground surface.
Unique Design
Twist Motion
The elegant patent two-bladed blades rotate with the help of two linear motors, allowing the roof to open up to 135°.
Sun Protection
The patent seal between each blade and along the perimeter guarantee perfect insulation from the external environment.
Integrated Side Screens
The structure completely integrates the ZIP roll-up closures inside the profiles, ensuring a perfect aesthetic solution and the possibility of inserting sliding glass closures.
Light Options

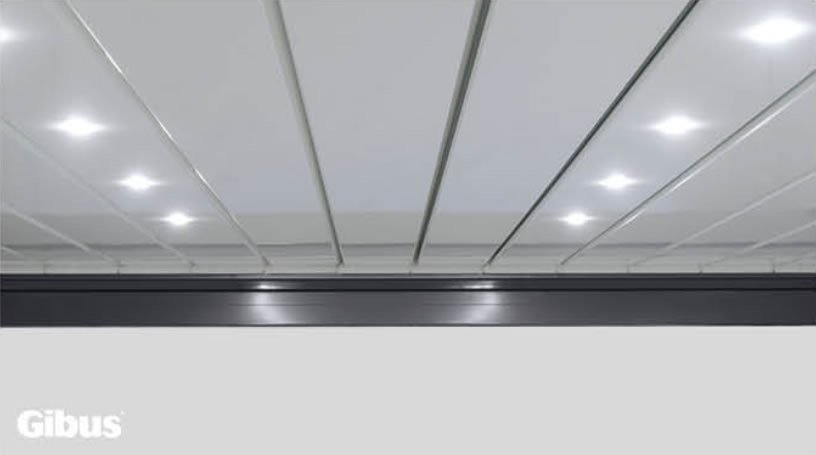

Blade LED Spots
Rectangular 3 Watt LED spotlights integrated inside the blades to guarantee excellent light distribution over the entire surface covered.

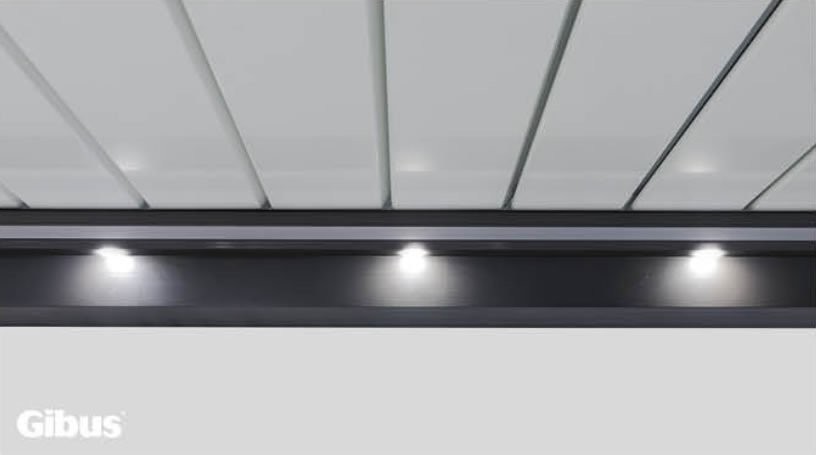

Perimeter LED Spots
Rectangular LED spotlights integrated inside the perimeter gutter of the structure. Arranged every 50cm in groups of 6 per light point, each are 3 Watts.

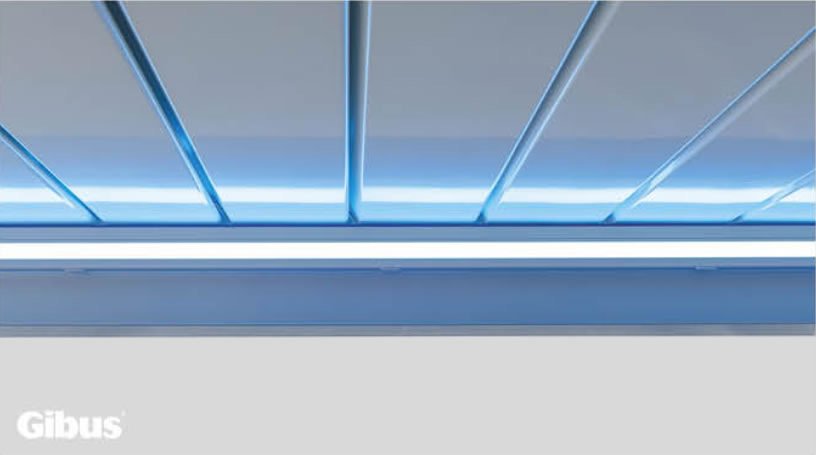

RGB LED Strips
RGB LED strips applied along the inside perimeter, set a single colour choice from 7 options (white, yellow, orange, red, green, blue and purple) or create a light program.
Enclosure Options

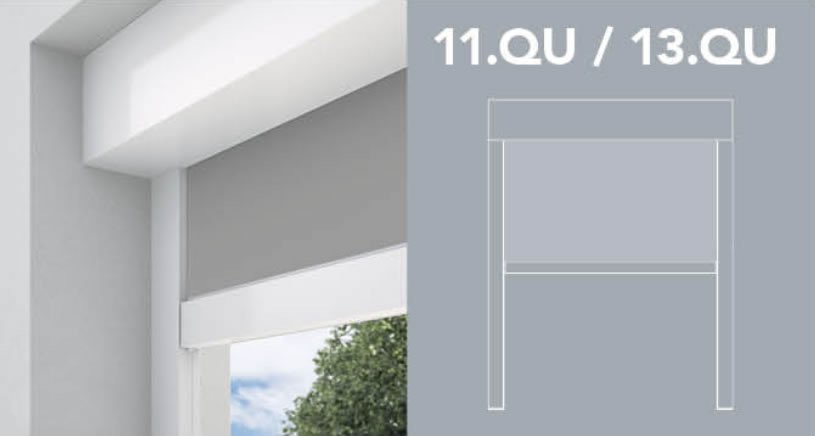

Drop Blinds
Blind in self-supporting vertical box cassette with guides including ZIP system for complete wind and rain protection.
Perimeter LED Spots

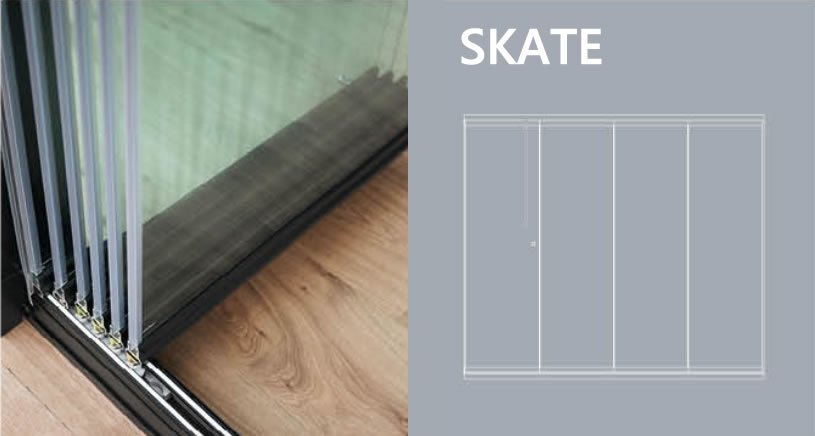

Sliding glass walls on stainless steel tracks, in 2, 3 or 4 way solutions and up to 8 doors without perimeter profiles. Toughened safety glass from 10 to 12mm thick.
RGB LED Strips
Sliding and folding wall panels made of toughened 10mm safety glass without perimeter profiles.
Med Varia Downloads
Installation
OutHounds use a nationwide network of certified skilled local trade partners to manage installations. Our partners include general builders, patio door specialists, landscape gardeners and roofers, so regardless of how complex your requirements are, we can get the right team on the job. Alternatively OutHounds can provide full installation support should you decide to use your own tradesman or even install yourself. Whichever option you choose, OutHounds will always provide comprehensive post installation support during the 5 year product warranty period. With OutHounds you get a great product, a perfect installation all at an unbeatable price.
Gibus is an Italian company and a global leader in designing and manufacturing awnings, pergolas and bioclimatic pergolas. They invest heavily in research and development, repeatedly developing new innovations in the outdoor living space.
People are at the heart of their success. With their experience, vision and passion they are able to produce premium quality tailor made pergolas and awnings, bringing the Italian-style outdoor living to thousands of homes across the world. Gibus products encompass the excellence of the ‘Made in Italy’ trademark: quality, style, creativity and authenticity.
